Prediction of In Vivo Single-Cell Gene Expression of Portal Hepatocytes

This demonstrates the application of scVIDR to predict gene expression changes in liver cell types, focusing on portal hepatocytes treated with 30 μg/kg TCDD. It includes UMAP visualizations of latent spaces, PCA comparisons, regression plots for predicted vs. observed gene expression, and performance evaluations using R² scores across models and gene sets.

Importing Required Libraries

Essential libraries are imported for data handling, single-cell analysis, statistical computations, and visualization.

import sys
sys.path.insert(1, '../vidr/')

# Import the VIDR functions
from vidr import VIDR
from utils import *

import scanpy as sc
import scgen as scg
import pandas as pd
import numpy as np
import torch
import seaborn as sns
import gseapy as gp
from scipy import stats
from scipy import linalg
from scipy import spatial
from anndata import AnnData
from scipy import sparse
from statannotations.Annotator import Annotator
from matplotlib import pyplot as plt

#For calculating statistical distance
import geomloss
import pykeops
import pykeops
pykeops.clean_pykeops()          # just in case old build files are still present
pykeops.test_numpy_bindings()    # perform the compilation

import scvi
sc.set_figure_params(dpi = 150)
sc.settings.figdir = "../figures"
sns.set_style("dark")

Loading Data

The single-cell dataset is loaded in AnnData format.

adata = sc.read_h5ad("../data/nault2021_singleDose.h5ad")

Data Preprocessing

Filters specific cell types, normalizes expression, selects the top 5000 highly variable genes, and formats dose information.

#Prepare Data Set
cell_types_of_int = ["Hepatocytes - central", "Hepatocytes - portal", "Cholangiocytes", "Stellate Cells", "Portal Fibroblasts", "Endothelial Cells"]
adata = adata[adata.obs['celltype'].isin(cell_types_of_int)]

sc.pp.normalize_total(adata)
sc.pp.log1p(adata)
sc.pp.highly_variable_genes(adata, n_top_genes=5000)

adata.obs["dose"] = [str(d) for d in adata.obs.Dose]
adata = adata[:,adata.var.highly_variable]

Training the Model

Prepare data for training, instantiate the VIDR model, and load pre-trained weights.

#Training model
cell = "Hepatocytes - portal"
train_adata, test_adata = prepare_data(adata, "celltype", "dose", cell, "30", normalized = True)
train_adata.obs["cell_dose"] = [f"{j}_{str(i)}" for (i,j) in zip(train_adata.obs["Dose"], train_adata.obs["celltype"])]
model = VIDR(train_adata, linear_decoder = False)
#     model.train(
#     max_epochs=100,
#     batch_size=128,
#     early_stopping=True,
#     early_stopping_patience=25)

#     model.save(f"../../data/VAE_Binary_Prediction_Dioxin_5000g_{cell}.pt")
vae = model.load(f"../../data/VAE_Binary_Prediction_Dioxin_5000g_{cell}.pt/", train_adata)

Figure 2A: UMAP Projection of Latent Space

UMAP visualization highlights the differences between control and treated samples in latent space.

#UMAP Projection of latent space
latent_X = vae.get_latent_representation(adata)
latent_adata = sc.AnnData(X=latent_X, obs=adata.obs.copy())
cell_dose = [f"{j}_{str(i)}" for (i,j) in zip(adata.obs["Dose"], adata.obs["celltype"])]
training = ["Train" if i != cell+"_30" else "Test" for i in cell_dose]
latent_adata.obs["Cell_Dose"] = cell_dose
latent_adata.obs["Training Split"] = training

sc.pp.neighbors(latent_adata)
sc.tl.umap(latent_adata)

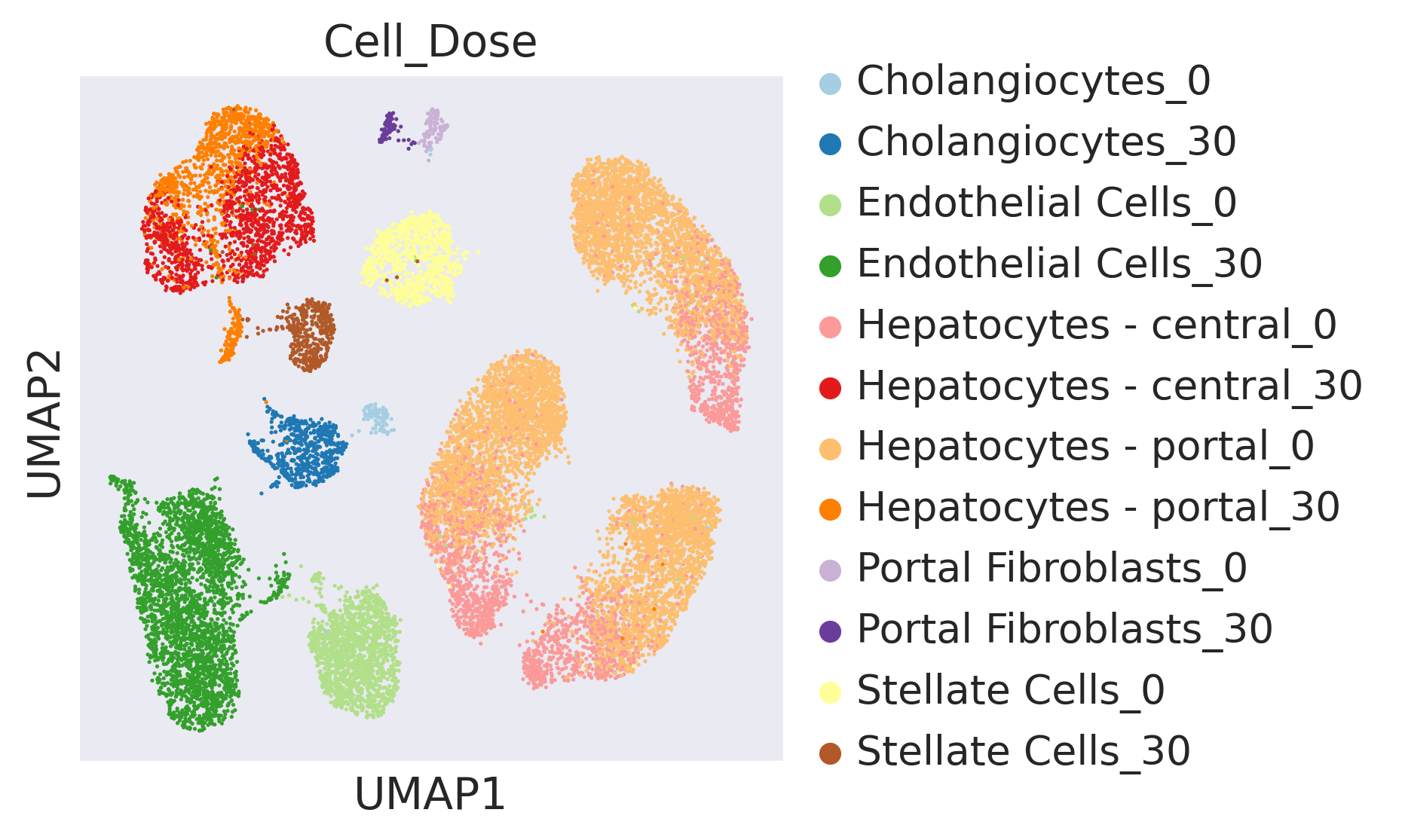

ax = sc.pl.umap(latent_adata, color=['Cell_Dose'], frameon=True,palette = "Paired", save ="2A1.svg")

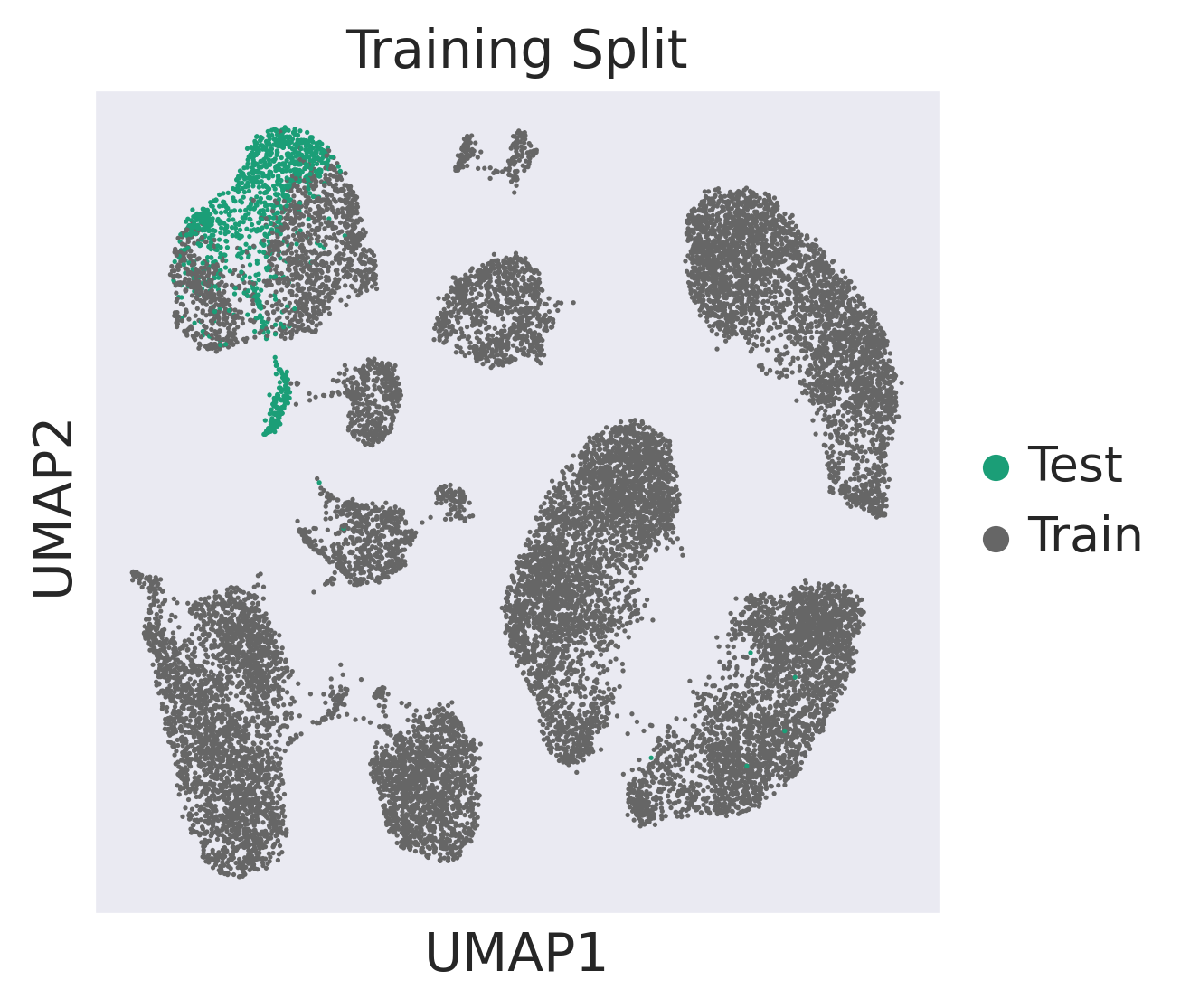

sc.pl.umap(latent_adata, color=['Training Split'], frameon=True,palette ="Dark2", save="2A2.svg")

Figure 2B: PCA Plots Comparing Prediction Models

Predicts gene expression under treatment and control without regression, combines the data, visualizes it using PCA, identifies differentially expressed genes, and evaluates prediction accuracy using R².

model = vae
pred, delta = model.predict(
ctrl_key="0",
treat_key="30",
cell_type_to_predict=cell,
regression = False)
pred.obs["dose"] = 'pred'
ctrl_adata = adata[((adata.obs['celltype'] == cell) & (adata.obs["dose"] == "0"))]
treat_adata = adata[((adata.obs['celltype'] == cell) & (adata.obs["dose"] == "30"))]
eval_adata1 = ctrl_adata.concatenate(treat_adata, pred)
treatments = []
for i in eval_adata1.obs["dose"]:
    if i == "0":
        treatments.append("Control")
    elif i == "30":
        treatments.append("TCDD")
    else:
        treatments.append("VAEArith")
eval_adata1.obs["Treatment"] = treatments
sc.tl.pca(eval_adata1)

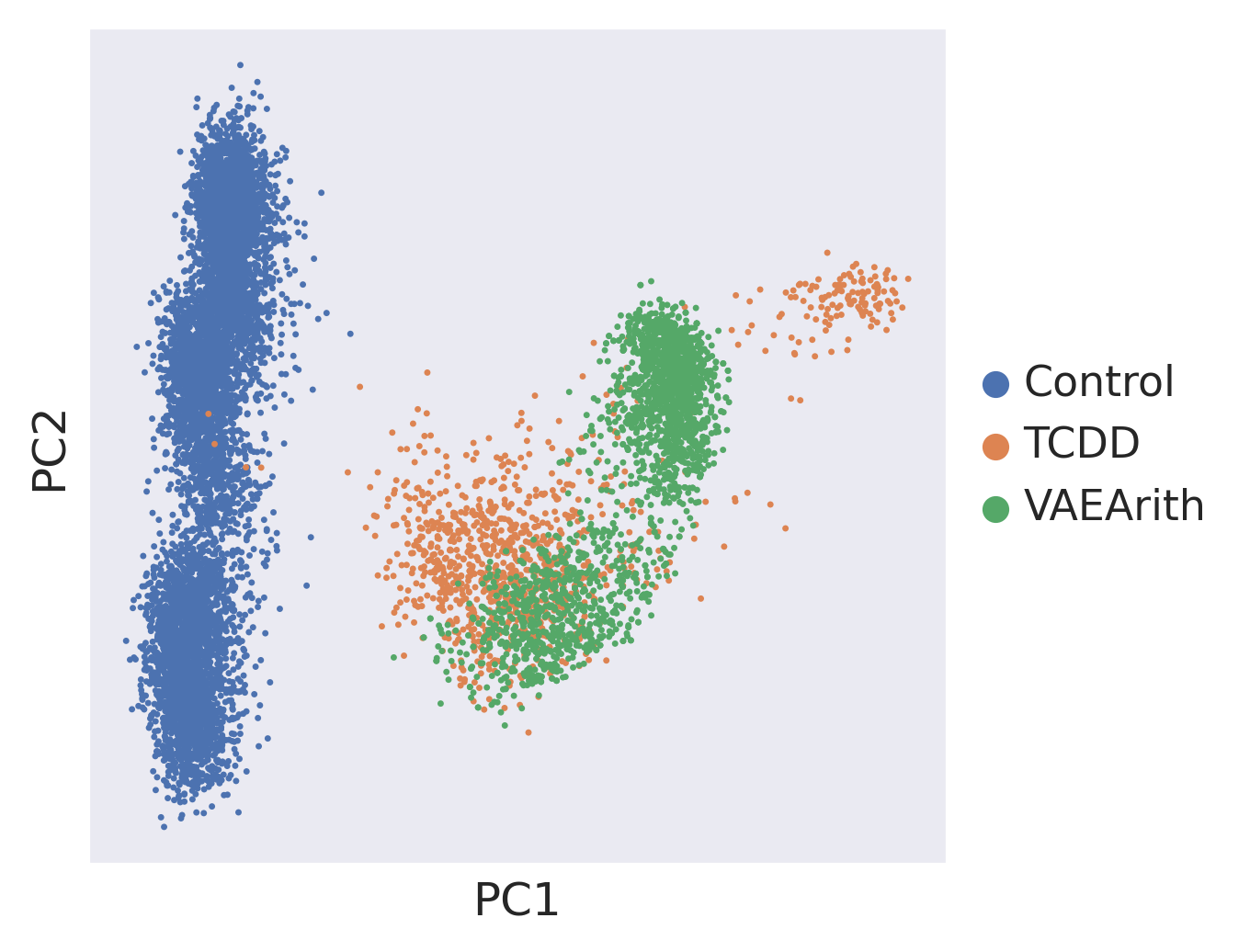

sc.pl.pca(eval_adata1, color = "Treatment", frameon = True, title = "", save = "2B1.svg")
CD4T = adata[adata.obs["celltype"] ==cell]
sc.tl.rank_genes_groups(CD4T, groupby="dose", method="wilcoxon")
diff_genes = CD4T.uns["rank_genes_groups"]["names"]["30"]

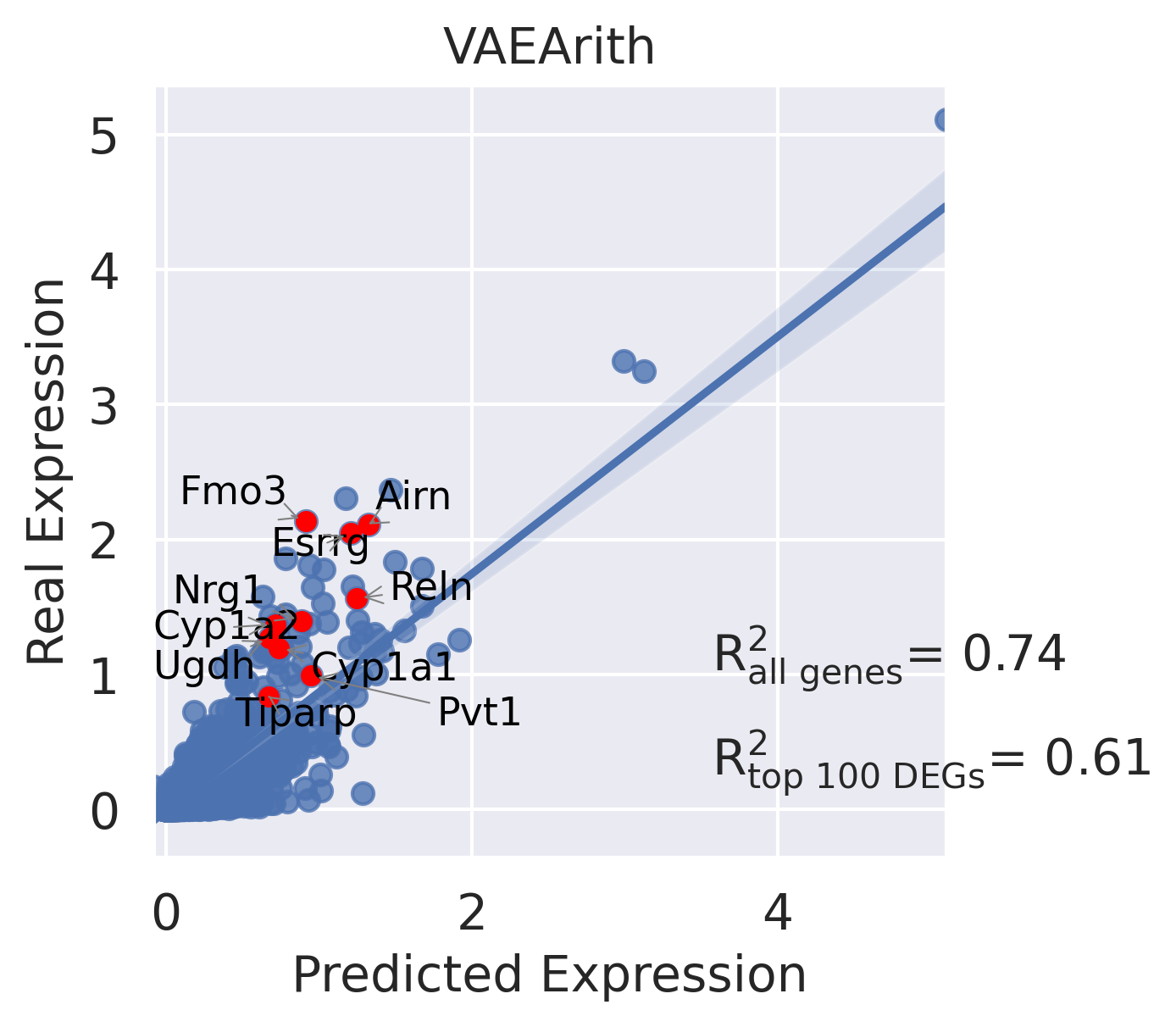

r2_value = model.reg_mean_plot(
eval_adata1,
axis_keys={"x": "pred", "y": "30"},
gene_list=diff_genes[:10],
top_100_genes = diff_genes[:100],
labels={"x": "Predicted Expression", "y": "Real Expression"},
path_to_save="../figures/2B2.svg",
show=True,
legend=False, title = "VAEArith")
print(r2_value)

(0.7412729808604916, 0.6055730593169139)

Figure 2C: Regression Analysis with Predicted Data

Predicts gene expression under treatment and control using regression, combines predicted and real data, and visualizes the results with PCA and regression plots. It also identifies differentially expressed genes and evaluates model accuracy using the R² value.

model = vae
pred, delta, reg = model.predict(
ctrl_key="0",
treat_key="30",
cell_type_to_predict=cell,
regression = True)
pred.obs["dose"] = 'pred'
ctrl_adata = adata[((adata.obs['celltype'] == cell) & (adata.obs["dose"] == "0"))]
treat_adata = adata[((adata.obs['celltype'] == cell) & (adata.obs["dose"] == "30"))]
eval_adata2 = ctrl_adata.concatenate(treat_adata, pred)
treatments = []
for i in eval_adata2.obs["dose"]:
    if i == "0":
        treatments.append("Control")
    elif i == "30":
        treatments.append("TCDD")
    else:
        treatments.append("scVIDR")
eval_adata2.obs["Treatment"] = treatments

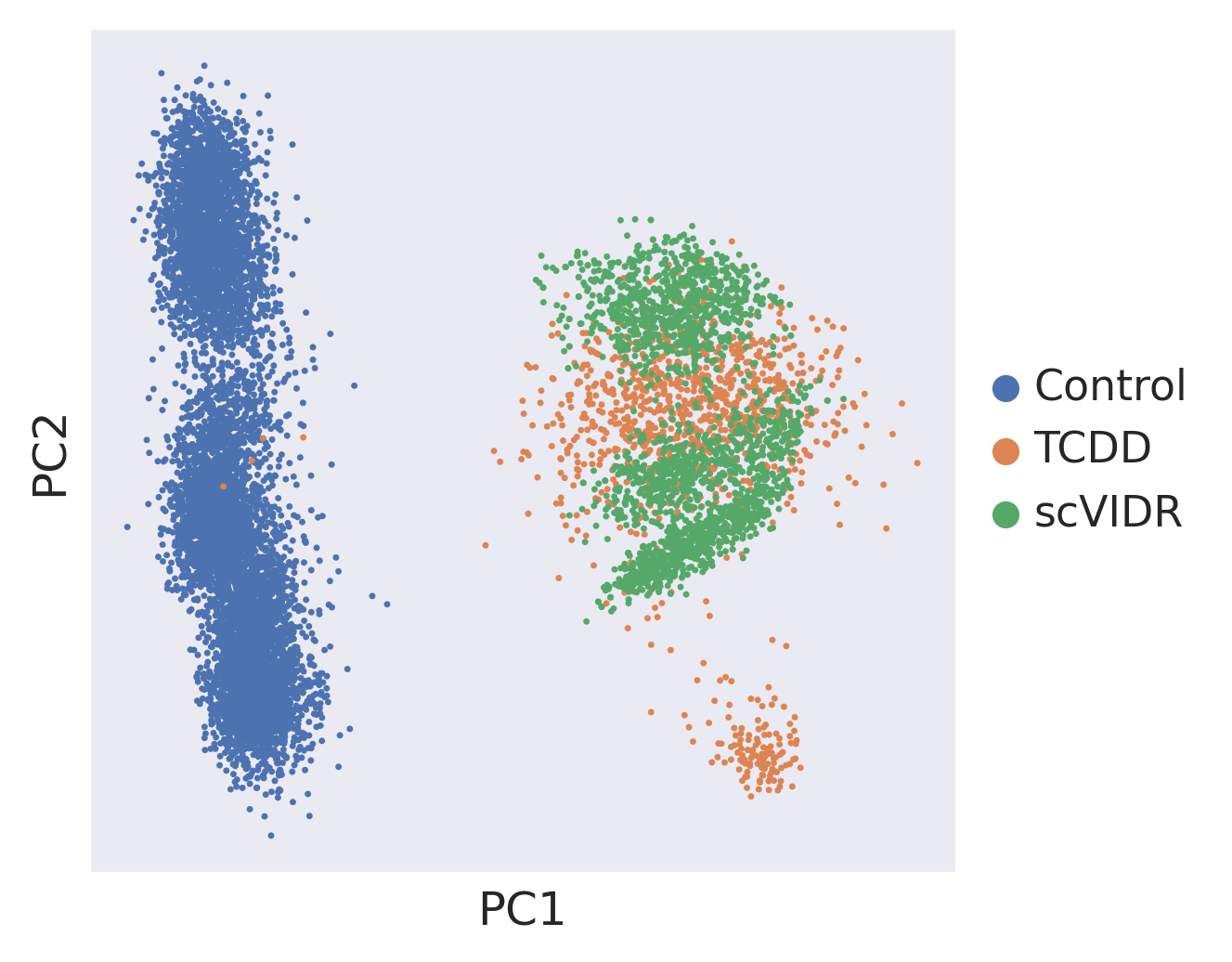

sc.tl.pca(eval_adata2)
sc.pl.pca(eval_adata2, color = "Treatment", frameon = True, title = "", save = "2C1.svg")
CD4T = adata[adata.obs["celltype"] ==cell]
sc.tl.rank_genes_groups(CD4T, groupby="dose", method="wilcoxon")
diff_genes = CD4T.uns["rank_genes_groups"]["names"]["30"]

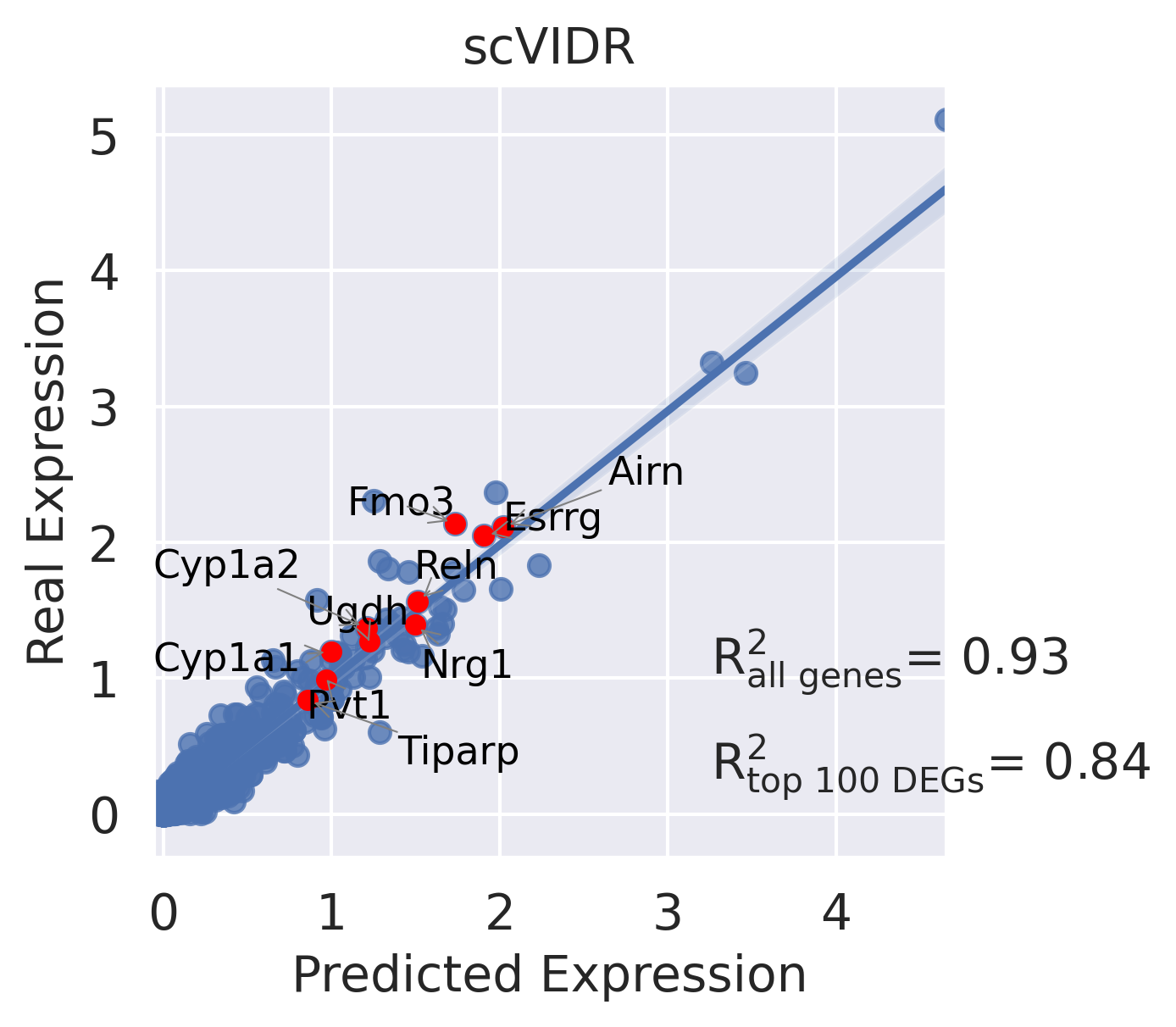

r2_value = model.reg_mean_plot(
eval_adata2,
axis_keys={"x": "pred", "y": "30"},
gene_list=diff_genes[:10],
top_100_genes = diff_genes[:100],
labels={"x": "Predicted Expression", "y": "Real Expression"},
path_to_save="../figures/Figure2C2.svg",
show=True,
legend=False, title = "scVIDR")
print(r2_value)

(0.9331575277168523, 0.8371578892235645)

Figure 2D: Comparison of Gene Expression Across Treatments

Combining predicted and real data to compare gene expression across treatments and visualizes Cyp1a2 expression using a violin plot.

eval_adata = eval_adata1.concatenate(eval_adata2)
eval_adata.obs

	Dose	batch	celltype	dose	_scvi_batch	_scvi_labels	_scvi_local_l_mean	_scvi_local_l_var	cell_dose	Treatment
AAACCCACAGTTAGGG_1-0-0-0	0	0	Hepatocytes - portal	0	NaN	NaN	NaN	NaN	NaN	Control
AAACCCAGTGCCTGCA_1-0-0-0	0	0	Hepatocytes - portal	0	NaN	NaN	NaN	NaN	NaN	Control
AAACGAACATAGAATG_1-0-0-0	0	0	Hepatocytes - portal	0	NaN	NaN	NaN	NaN	NaN	Control
AAACGAAGTCGATTAC_1-0-0-0	0	0	Hepatocytes - portal	0	NaN	NaN	NaN	NaN	NaN	Control
AAACGCTTCGGCATCG_1-0-0-0	0	0	Hepatocytes - portal	0	NaN	NaN	NaN	NaN	NaN	Control
...	...	...	...	...	...	...	...	...	...	...
ATAGAGAAGGTCCCGT_3-0-0-2-1	0	1	Hepatocytes - portal	pred	0.0	3.0	5.716166	0.067732	Hepatocytes - portal_0	scVIDR
TTCCTTCTCTCCCAAC_3-0-0-2-1	0	1	Hepatocytes - portal	pred	0.0	3.0	5.716166	0.067732	Hepatocytes - portal_0	scVIDR
CAGCACGAGCTCCGAC_2-0-0-2-1	0	1	Hepatocytes - portal	pred	0.0	3.0	5.716166	0.067732	Hepatocytes - portal_0	scVIDR
AACCATGCAGGCCCTA_1-0-0-2-1	0	1	Hepatocytes - portal	pred	0.0	3.0	5.716166	0.067732	Hepatocytes - portal_0	scVIDR
CACGGGTTCGCACGAC_2-0-0-2-1	0	1	Hepatocytes - portal	pred	0.0	3.0	5.716166	0.067732	Hepatocytes - portal_0	scVIDR

21902 rows × 10 columns

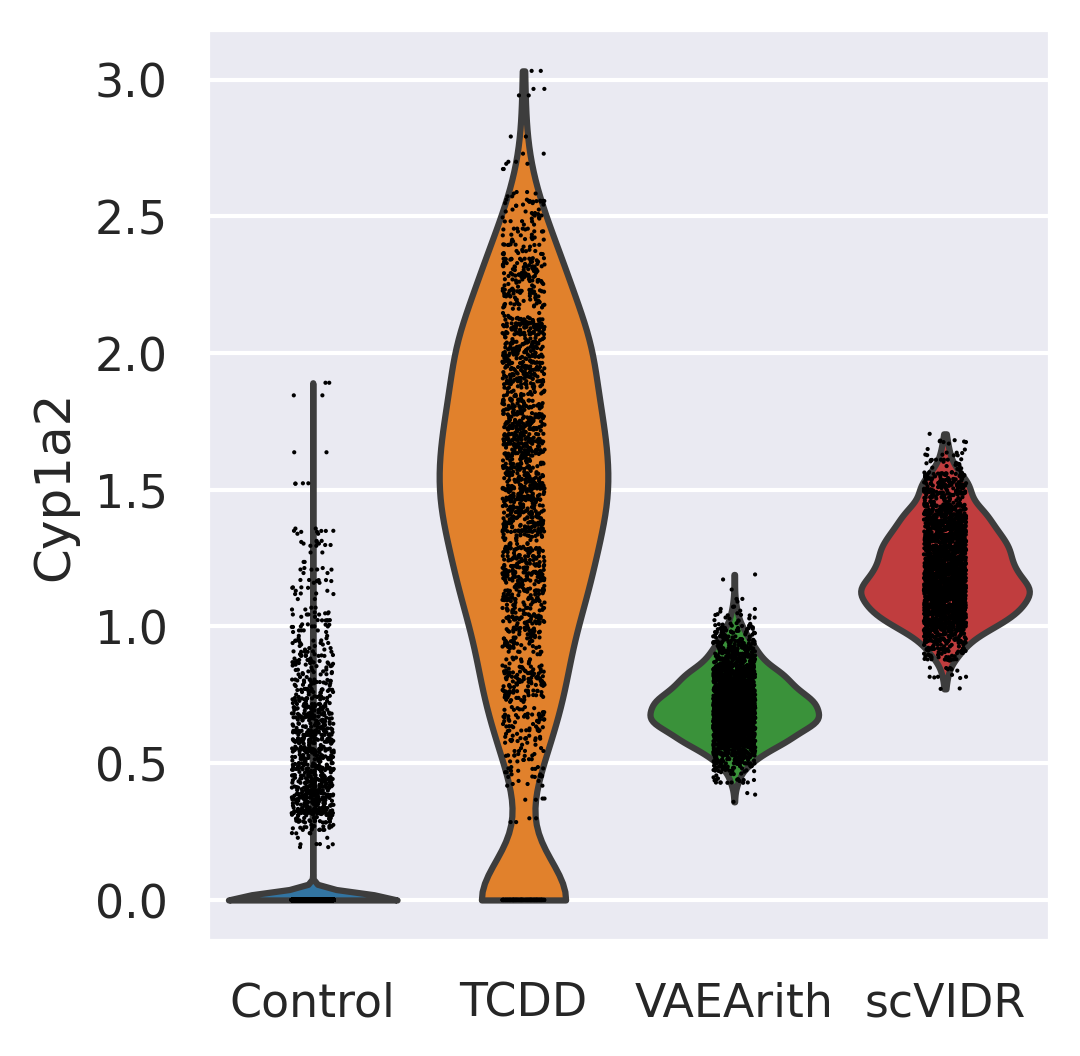

ax = sc.pl.violin(eval_adata, ["Cyp1a2"], groupby = "Treatment", rotation = 0, palette = "tab10", save = "2D.svg")

Figure 2E: Comprehensive Analysis of Gene Expression Predictions Across Cell Types

Each cell type in the dataset is analyzed to predict gene expression changes between control and treated conditions. First, VIDR models are trained for each cell type, evaluated using non-regression-based predictions, and their performance is quantified. Next, pre-trained scVIDR models are used to make regression-based predictions for more precise analysis. Differentially expressed genes are identified for both approaches, and R² metrics are calculated to assess the accuracy of predictions.

df_list = []
celltypes = np.unique(adata.obs["celltype"])
for cell in celltypes:
    print(cell)
    train_adata, test_adata = prepare_data(adata, "celltype", "dose", cell, "30", normalized = True)

    model = VIDR(train_adata, linear_decoder = False)
    model.train(
    max_epochs=100,
    batch_size=128,
    early_stopping=True,
    early_stopping_patience=25)

    model.save(f"../data/VAE_Binary_Prediction_Dioxin_5000g_{cell}.pt", overwrite = True)
    model = model.load(f"../data/VAE_Binary_Prediction_Dioxin_5000g_{cell}.pt/", train_adata)

    model_name = "VAEArith"

    pred, delta = model.predict(
    ctrl_key="0",
    treat_key="30",
    cell_type_to_predict=cell,
    regression = False)

    pred.obs["dose"] = 'pred'
    ctrl_adata = adata[((adata.obs['celltype'] == cell) & (adata.obs["dose"] == "0"))]
    treat_adata = adata[((adata.obs['celltype'] == cell) & (adata.obs["dose"] == "30"))]
    eval_adata = ctrl_adata.concatenate(treat_adata, pred)

    CD4T = adata[adata.obs["celltype"] ==cell]
    sc.tl.rank_genes_groups(CD4T, groupby="dose", method="wilcoxon")
    diff_genes = CD4T.uns["rank_genes_groups"]["names"]["30"]

    r2_df = calculate_r2_singledose(
        eval_adata, cell,
        model_name,
        "dose",
        {"x":"pred", "y":"30"},
        diff_genes=diff_genes[:100],
        random_sample_coef = 0.8,
        n_iter = 500
    )
    df_list.append(r2_df)

for cell in celltypes:
    print(cell)
    train_adata, test_adata = prepare_data(adata, "celltype", "dose", cell, "30", normalized = True)

    model = VIDR(train_adata, linear_decoder = False)
#     model.train(
#     max_epochs=100,
#     batch_size=128,
#     early_stopping=True,
#     early_stopping_patience=25)

#     model.save(f"../../data/VAE_Binary_Prediction_Dioxin_5000g_{cell}.pt")
    model = model.load(f"../../data/VAE_Binary_Prediction_Dioxin_5000g_{cell}.pt/", train_adata)

    model_name = "scVIDR"

    pred, delta, reg = model.predict(
    ctrl_key="0",
    treat_key="30",
    cell_type_to_predict=cell,
    regression = True)

    pred.obs["dose"] = 'pred'
    ctrl_adata = adata[((adata.obs['celltype'] == cell) & (adata.obs["dose"] == "0"))]
    treat_adata = adata[((adata.obs['celltype'] == cell) & (adata.obs["dose"] == "30"))]
    eval_adata = ctrl_adata.concatenate(treat_adata, pred)

    CD4T = adata[adata.obs["celltype"] ==cell]
    sc.tl.rank_genes_groups(CD4T, groupby="dose", method="wilcoxon")
    diff_genes = CD4T.uns["rank_genes_groups"]["names"]["30"]

    r2_df = calculate_r2_singledose(
        eval_adata, cell,
        model_name,
        "dose",
        {"x":"pred", "y":"30"},
        diff_genes=diff_genes[:100],
        random_sample_coef = 0.8,
        n_iter = 500
    )
    df_list.append(r2_df)

r2_values_allCells_df = pd.concat(df_list)

r2_values_allCells_df.to_csv("../data/SingleDose_Model_Results.csv")

Comparing R² values of scVIDR and VAEArith across gene sets with statistical annotations.

order = ['scVIDR', 'VAEArith']
hue_order = ["All HVGs", "DEGs"]

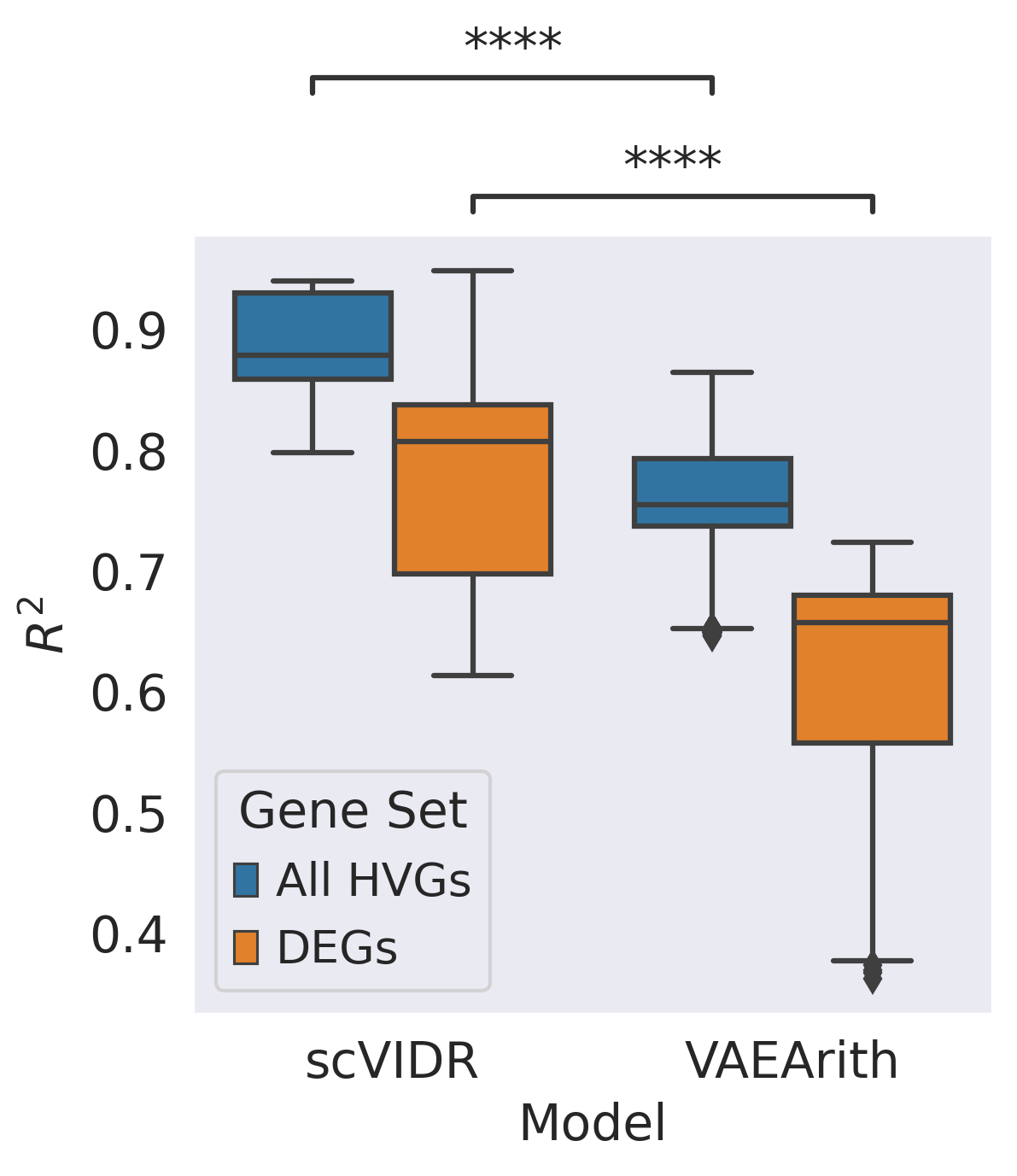

ax = sns.boxplot(x = "Model", y = "R^2",  data = r2_values_allCells_df, hue = "Gene Set", order = order, hue_order = hue_order)
pairs = [
    (('scVIDR','All HVGs'), ('VAEArith', 'All HVGs')),
    (('scVIDR','DEGs'), ('VAEArith', 'DEGs'))
]
annotator = Annotator(ax, pairs, data=r2_values_allCells_df, x="Model", y="R^2", hue = "Gene Set", order = order)
annotator.configure(test='Mann-Whitney-gt', text_format='star', loc='outside')
annotator.apply_and_annotate()
plt.ylabel(r"$R^2$")
plt.savefig("../figures/Figure2E.svg", bbox_inches = "tight")
plt.show()

df = r2_values_allCells_df[r2_values_allCells_df["Gene Set"] == "DEGs"]

Comparing R² values of scVIDR and VAEArith across cell types using a bar plot.

order = ['scVIDR', 'VAEArith']
hue_order = ["All HVGs", "DEGs"]

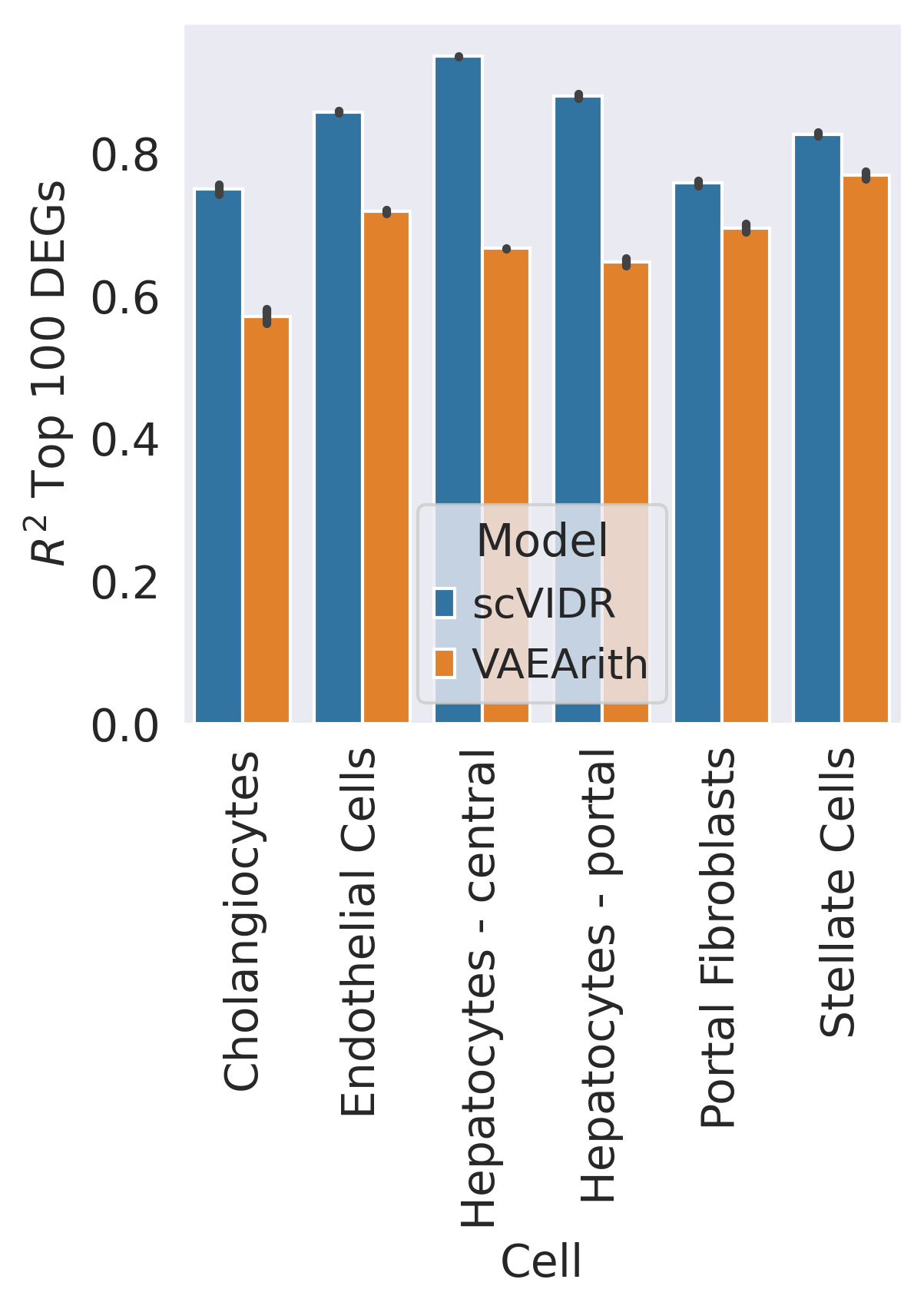

ax = sns.barplot(x = "Cell", y = "R^2",  data = r2_values_allCells_df, hue = "Model", hue_order=order)
plt.ylabel("$R^2$ Top 100 DEGs")
plt.xticks(rotation = 90)

Identifies differentially expressed genes (DEGs) between treatment groups for each cell type, performs KEGG pathway enrichment analysis, and visualizes enriched pathways with bar plots.

for cell in celltypes:
    print(cell)

    CD4T = adata[adata.obs["celltype"] ==cell]
    sc.tl.rank_genes_groups(CD4T, groupby="dose", method="wilcoxon")
    diff_genes = CD4T.uns["rank_genes_groups"]["names"]["30"]
    glist = diff_genes[:100]
    CD4T.

for cell in celltypes:
    print(cell)

    CD4T = adata[adata.obs["celltype"] ==cell]
    sc.tl.rank_genes_groups(CD4T, groupby="dose", method="wilcoxon")
    diff_genes = CD4T.uns["rank_genes_groups"]["names"]["30"]
    glist = diff_genes[:125]
    print(glist[:10])
    glist = glist.tolist()
    enr = gp.enrichr(gene_list=glist,
                     gene_sets=["KEGG_2019_Mouse"],
                     organism='Mouse', # don't forget to set organism to the one you desired! e.g. Yeast
                     description='test_name',
                     outdir='test/enrichr_kegg',
                     # no_plot=True,
                     cutoff=0.5 # test dataset, use lower value from range(0,1)
                    )

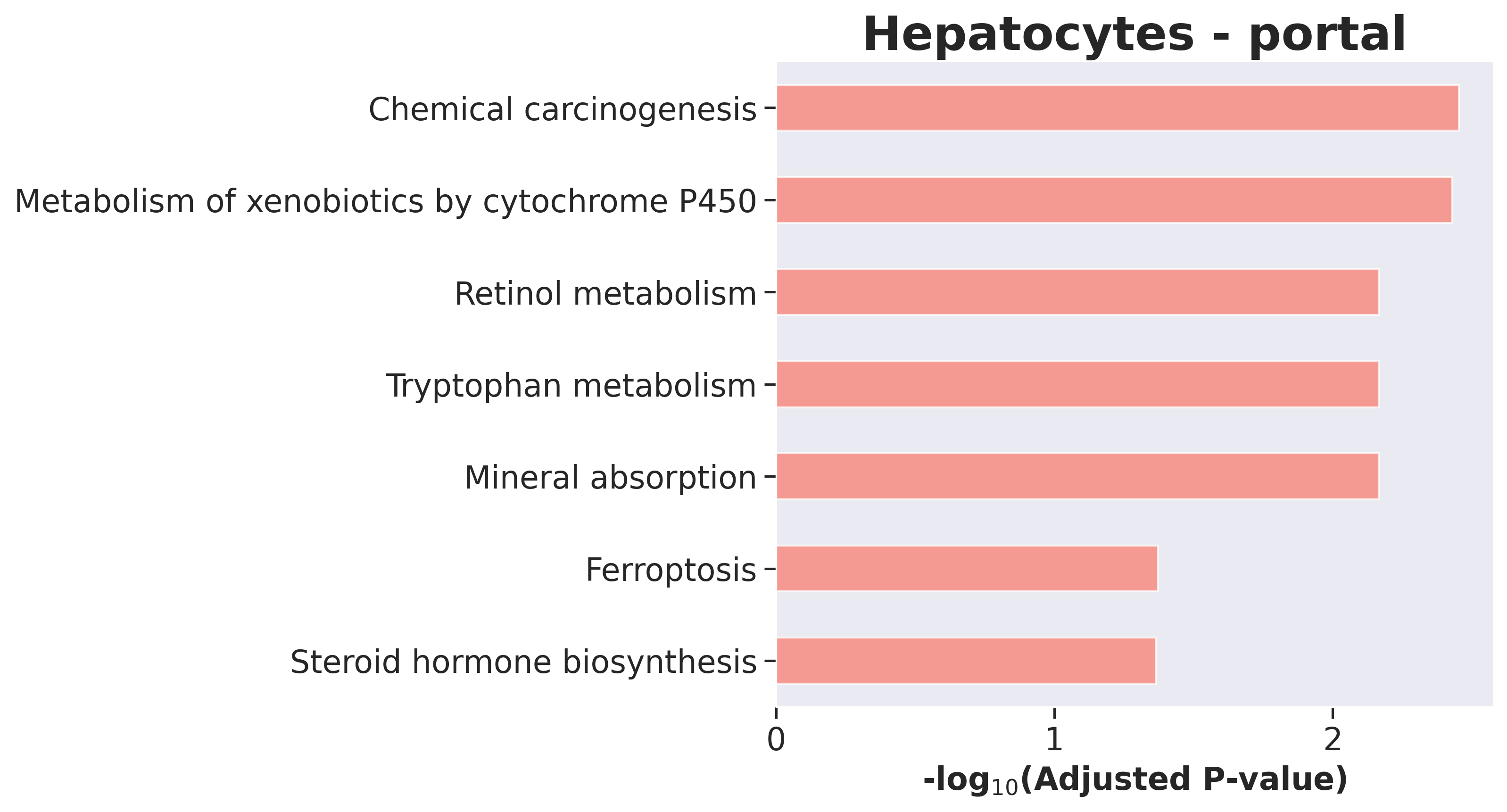

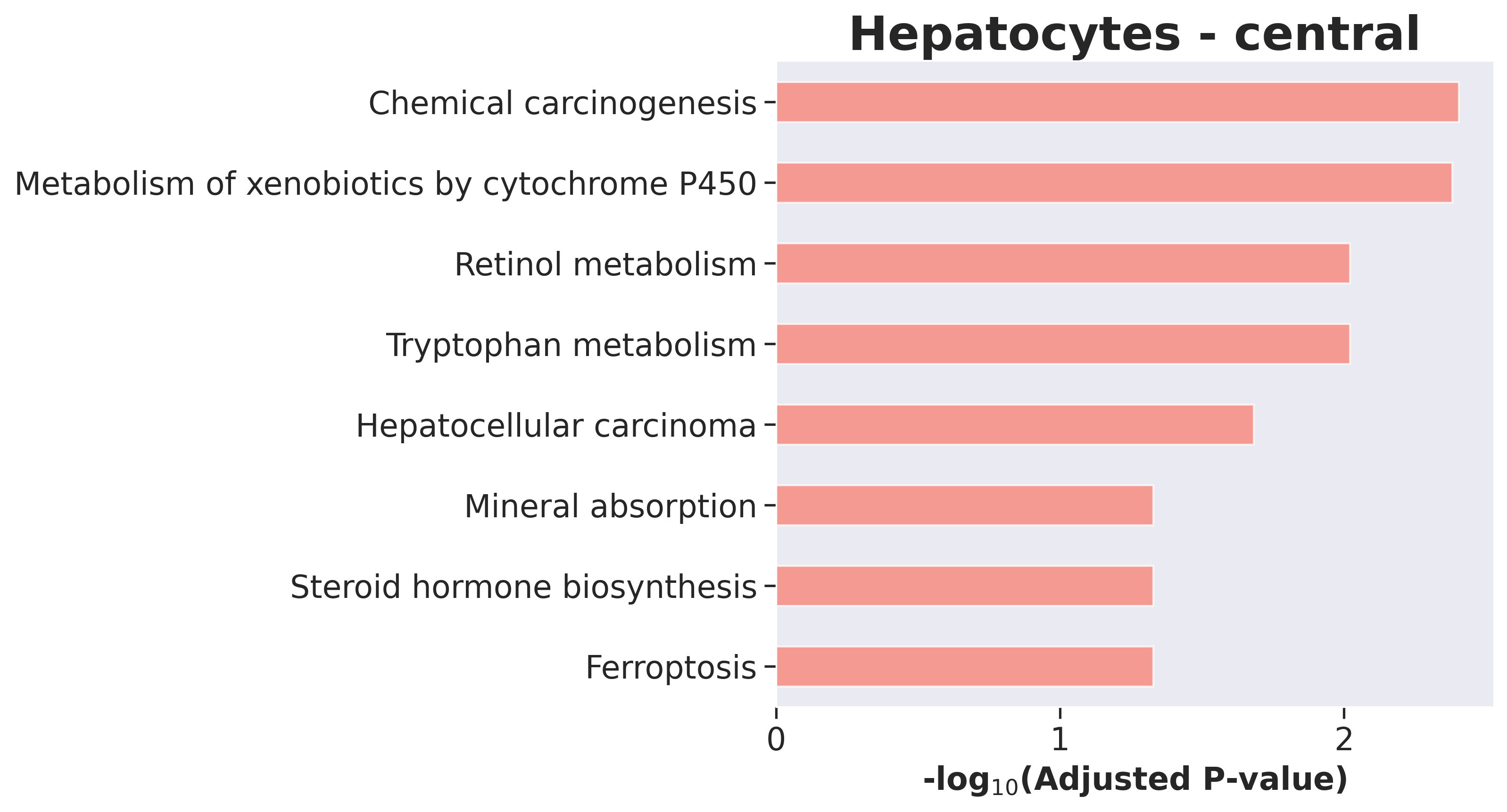

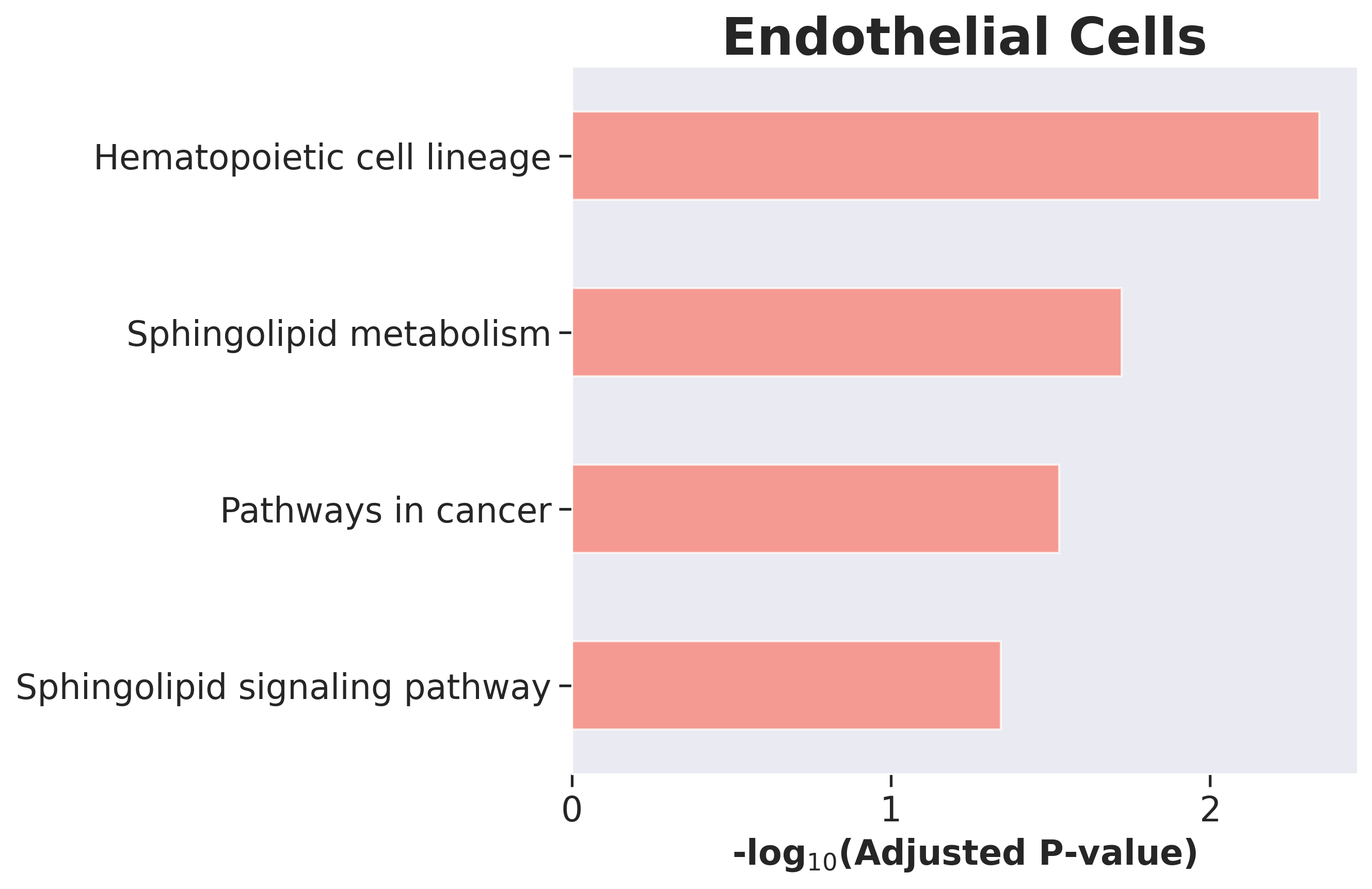

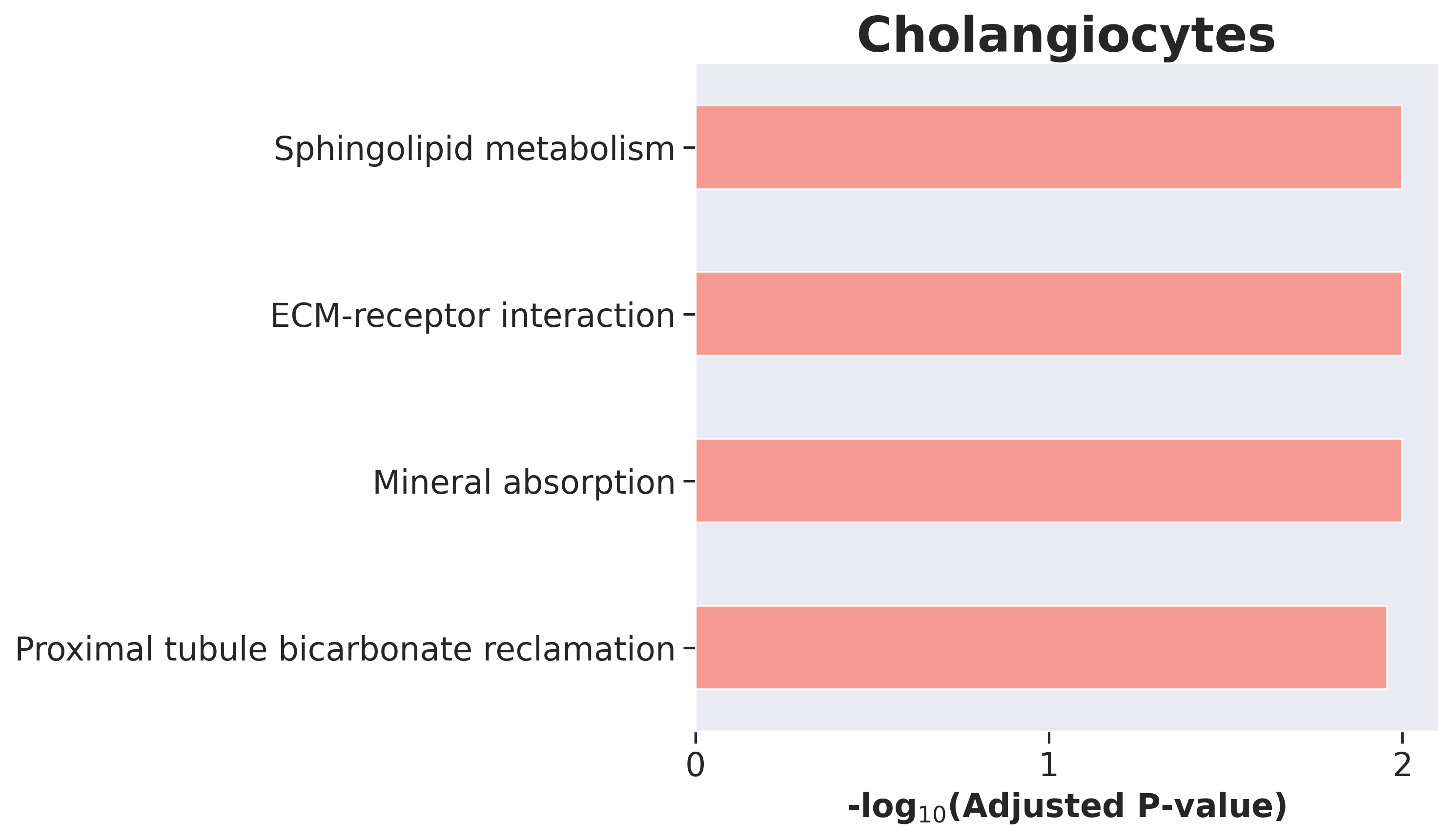

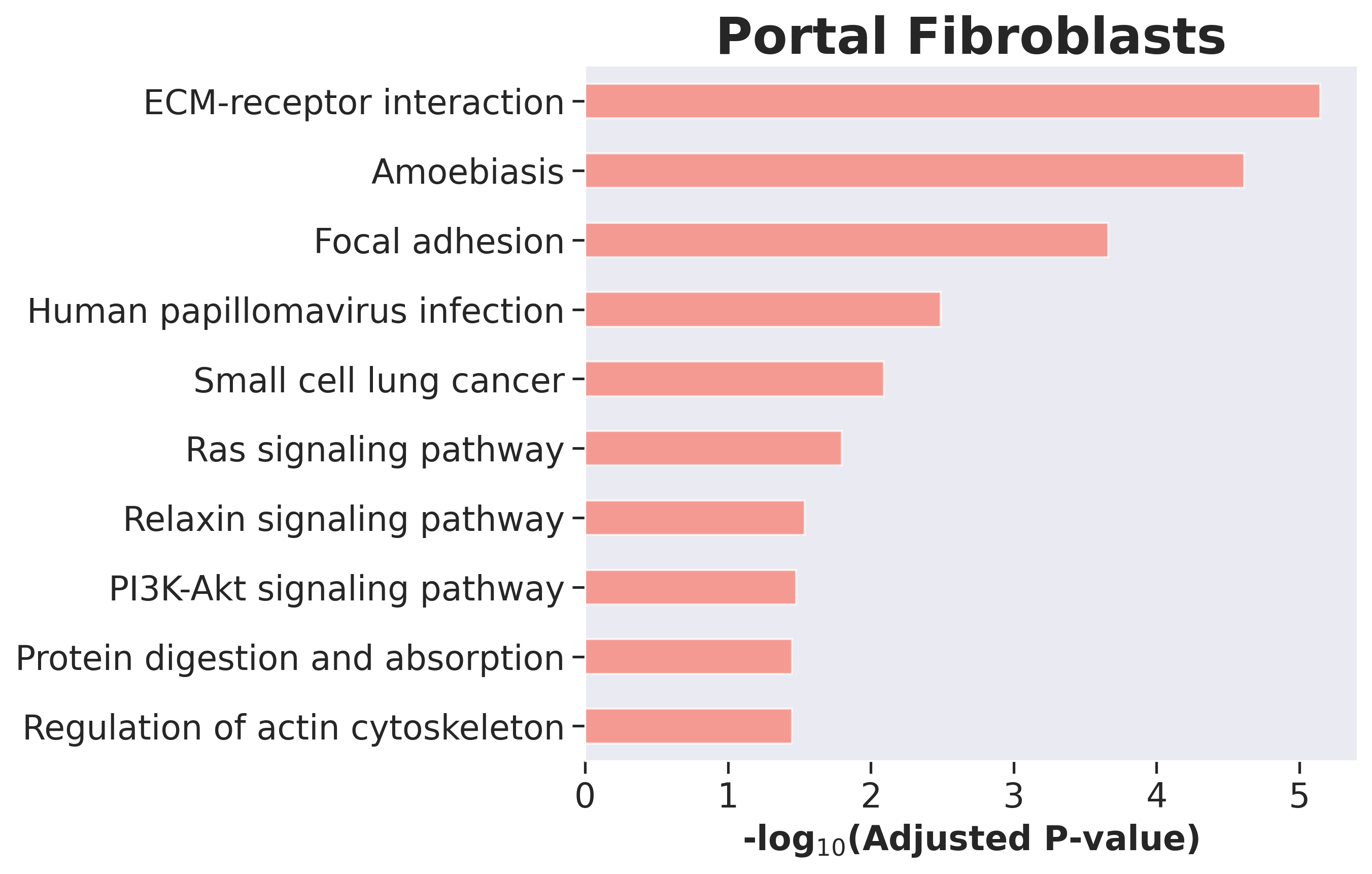

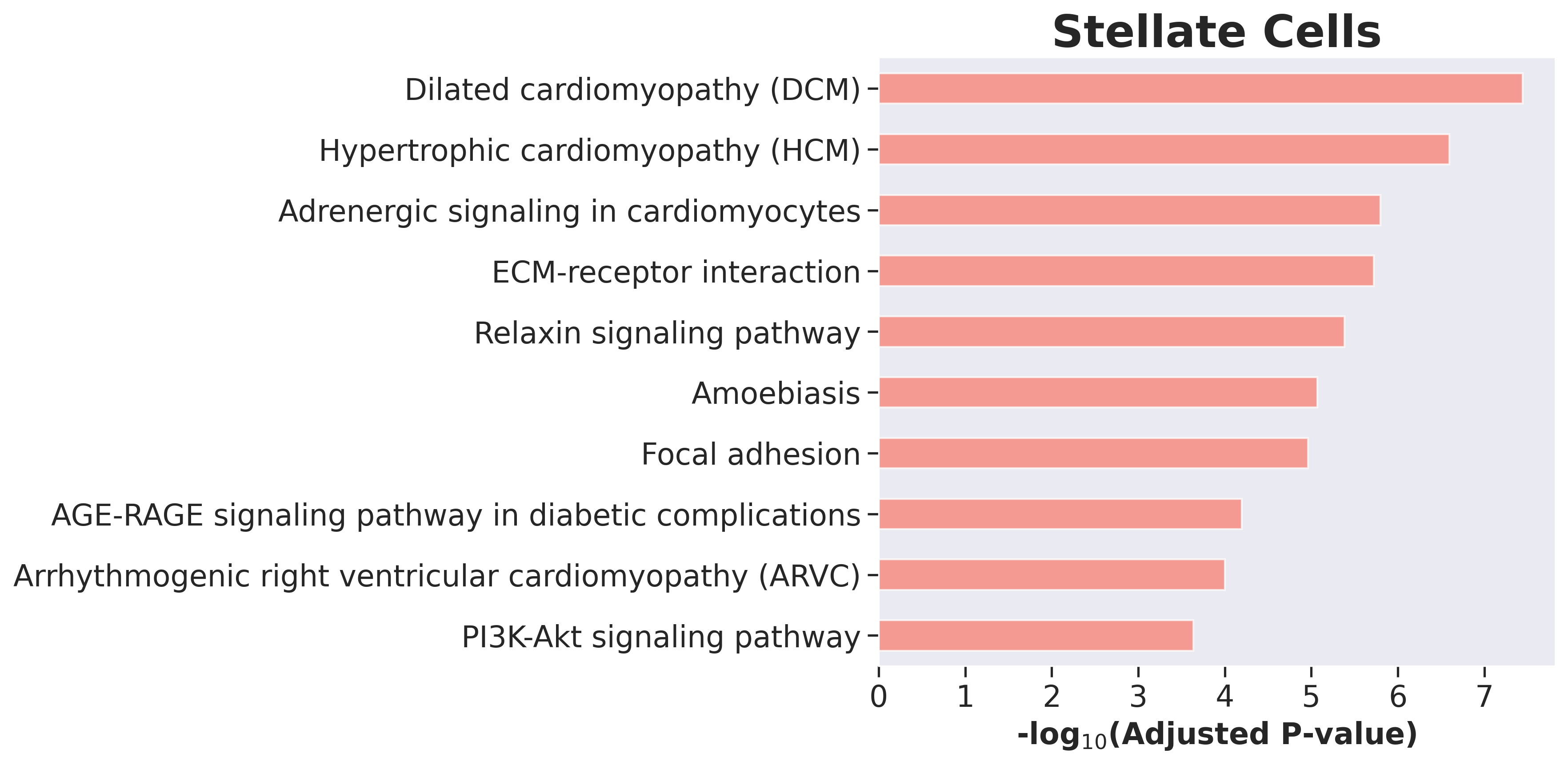

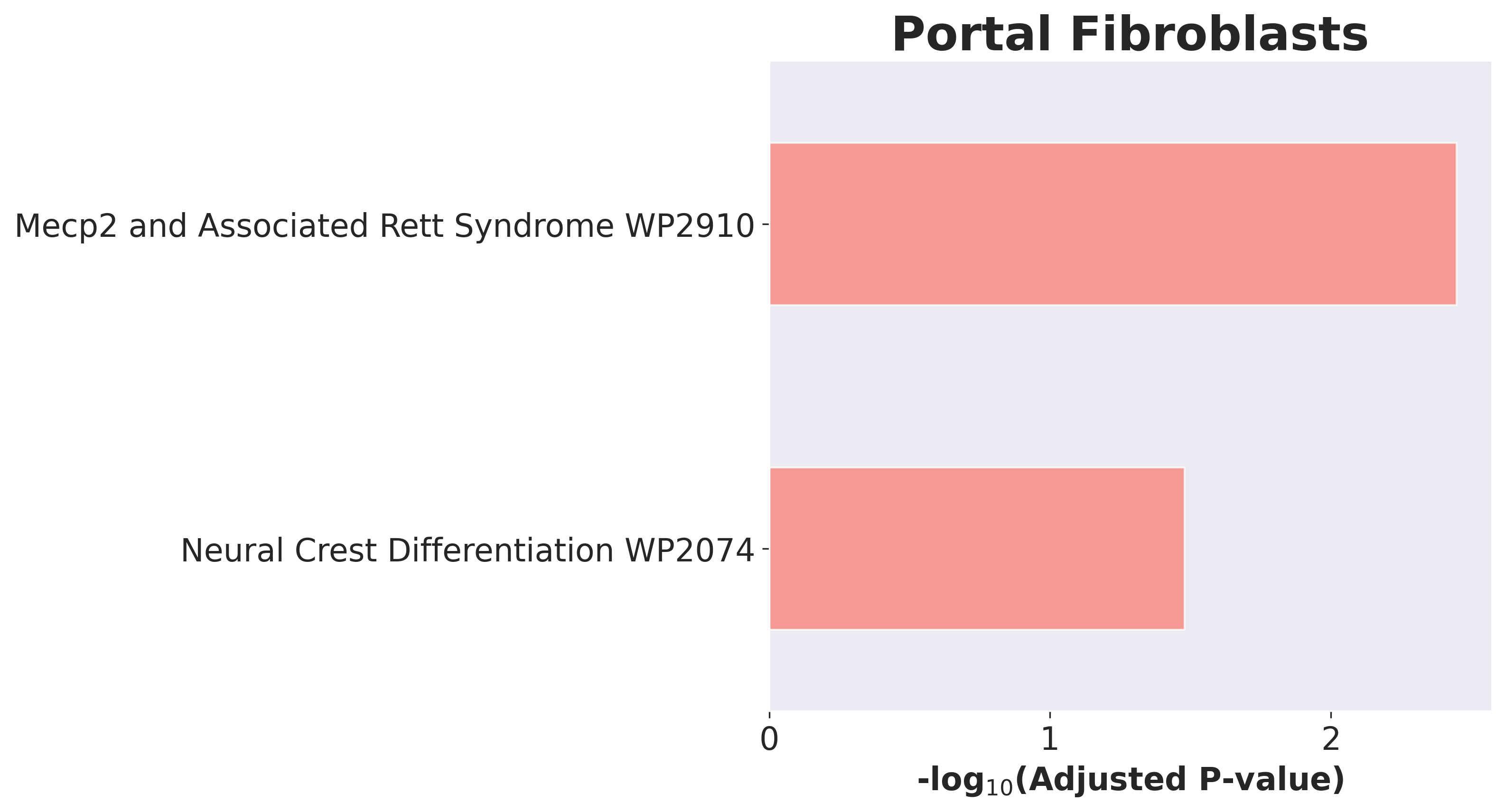

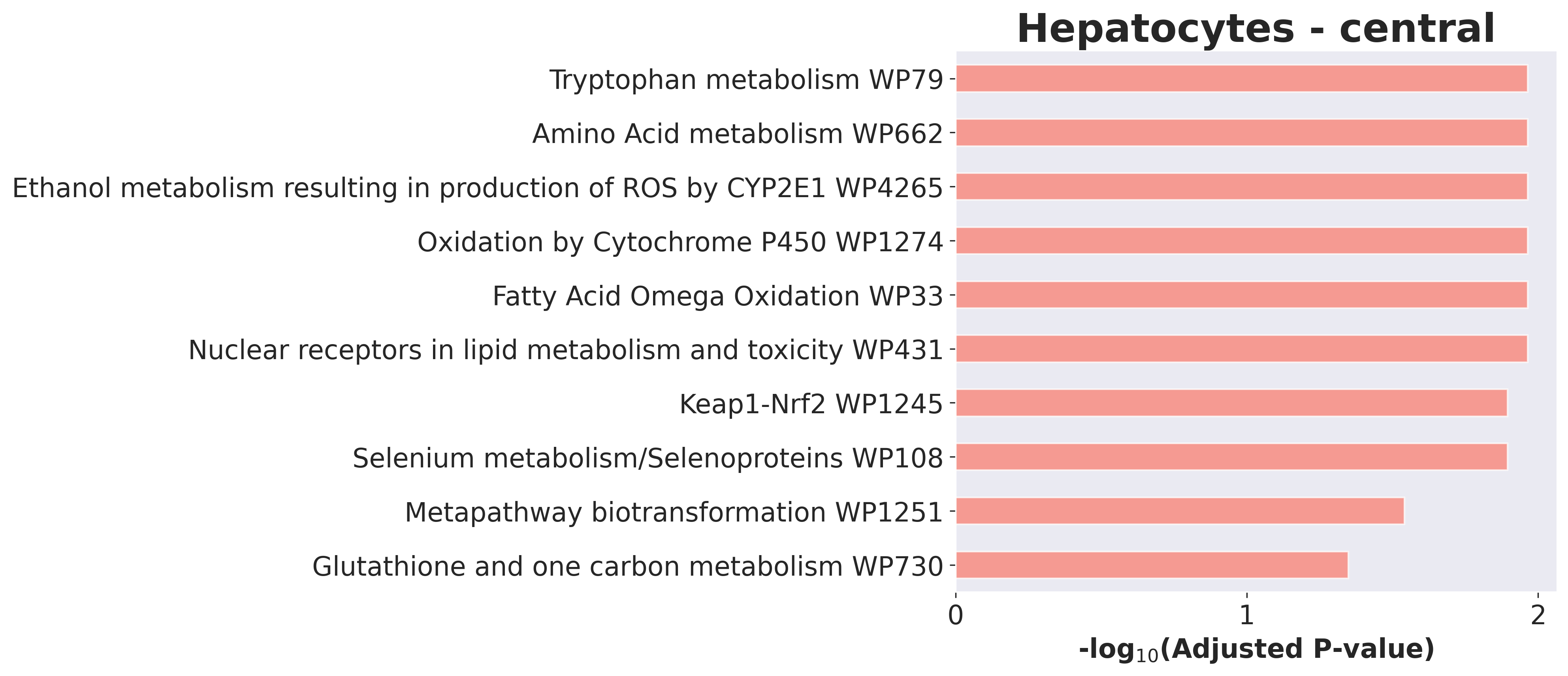

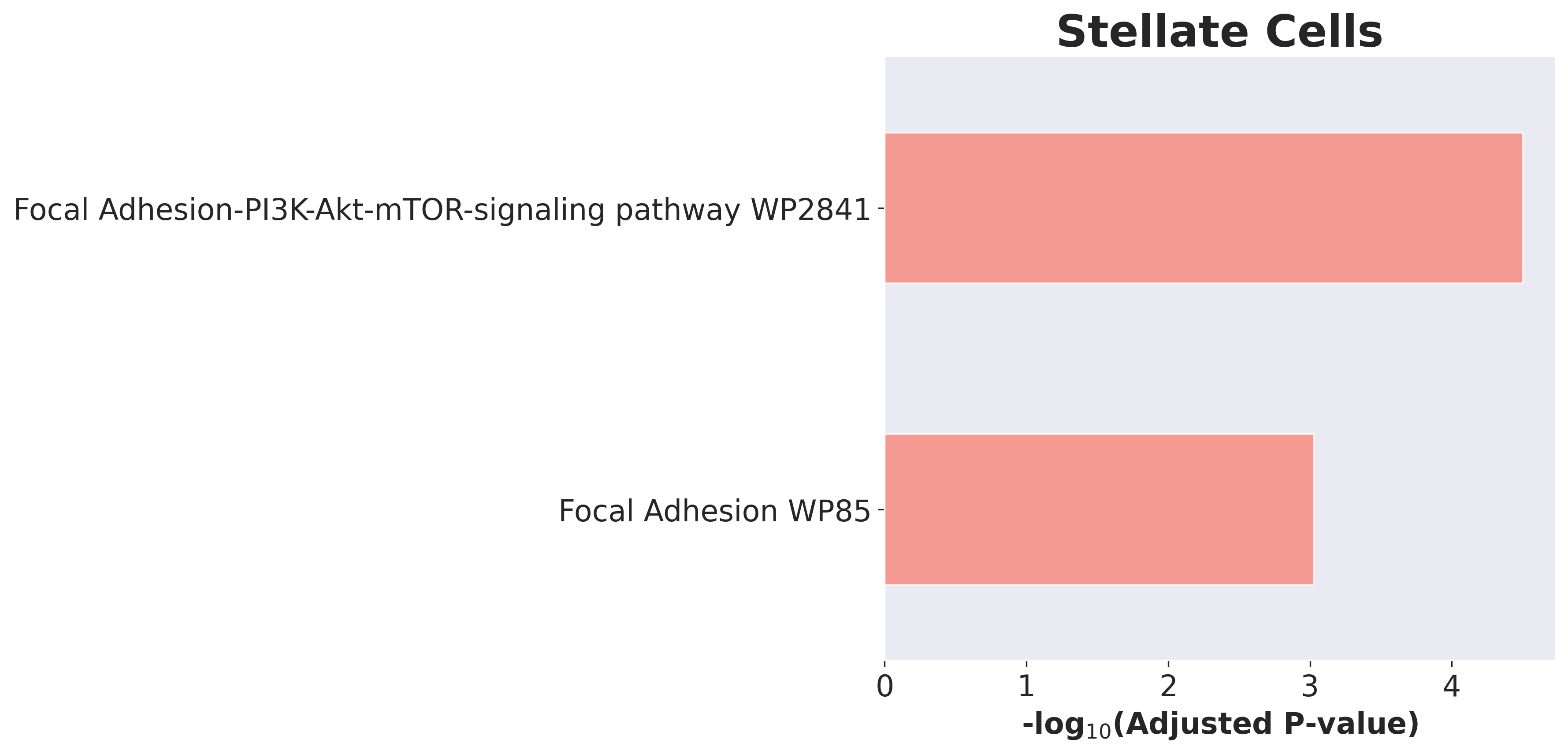

    gp.plot.barplot(enr.res2d, title = f"{cell}")
    plt.show()

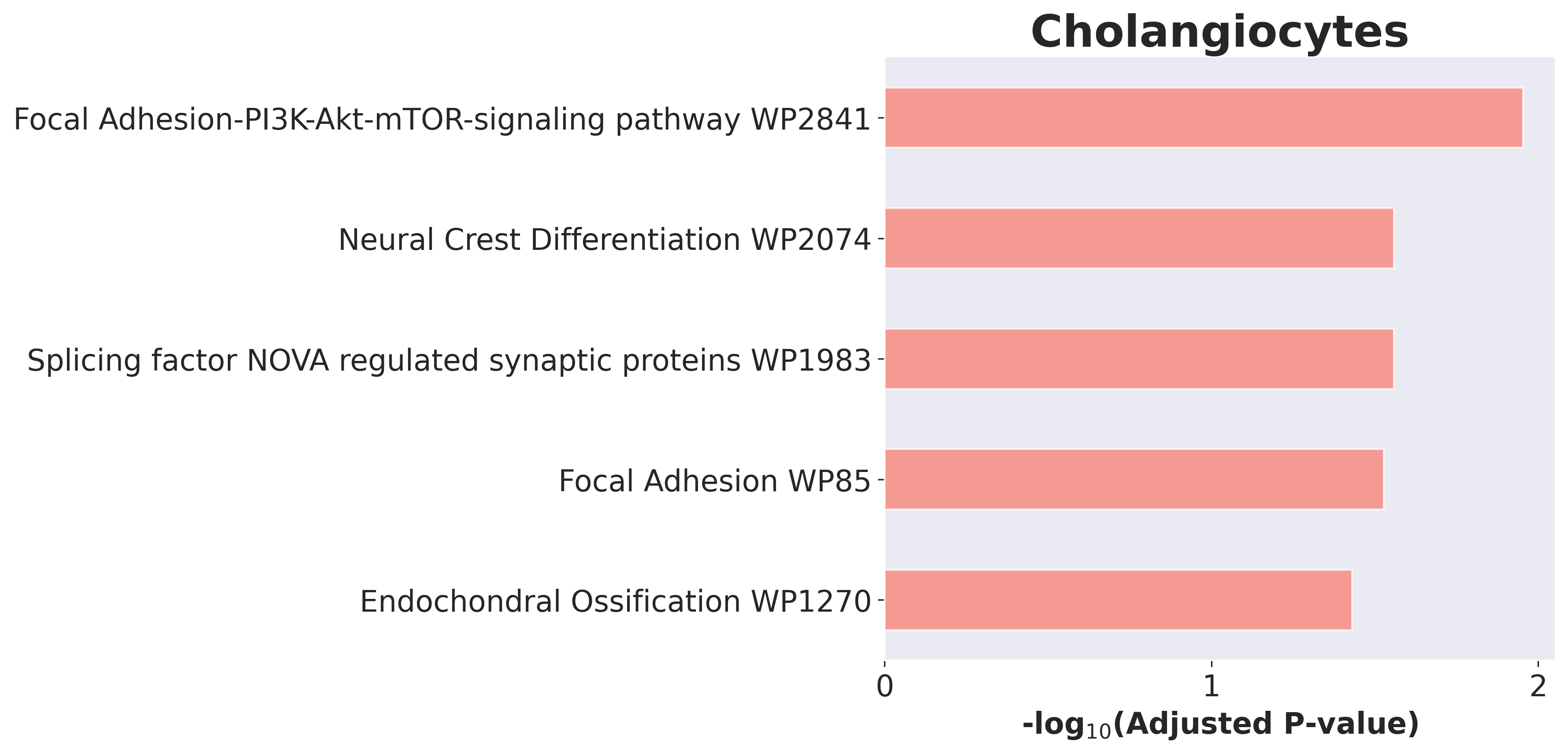

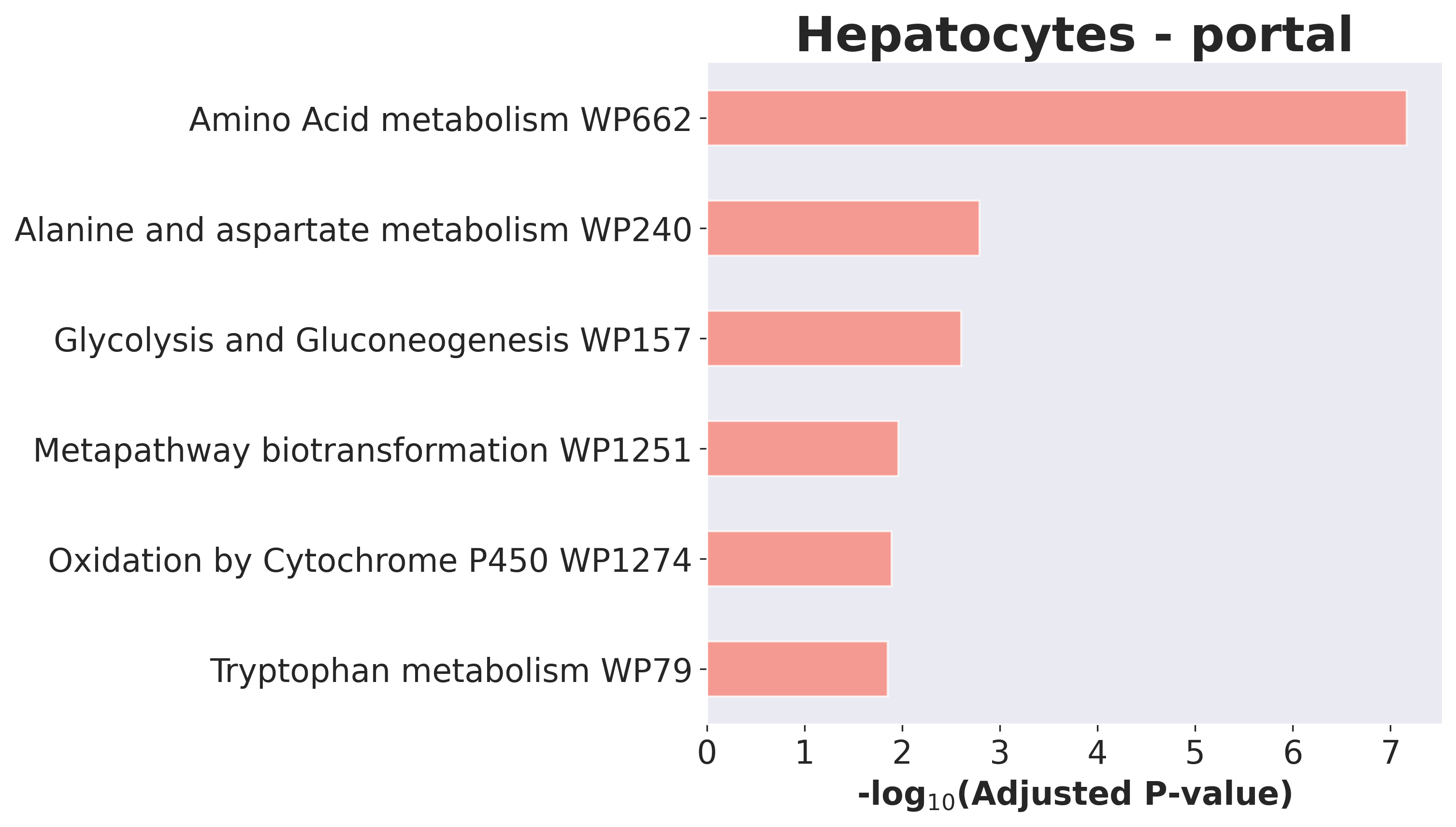

Identifies and visualizes differentially expressed genes (DEGs) across cell types within the treated group (dose=30) using a Wilcoxon rank-sum test.

CD4T = adata[adata.obs["dose"] == "30"]

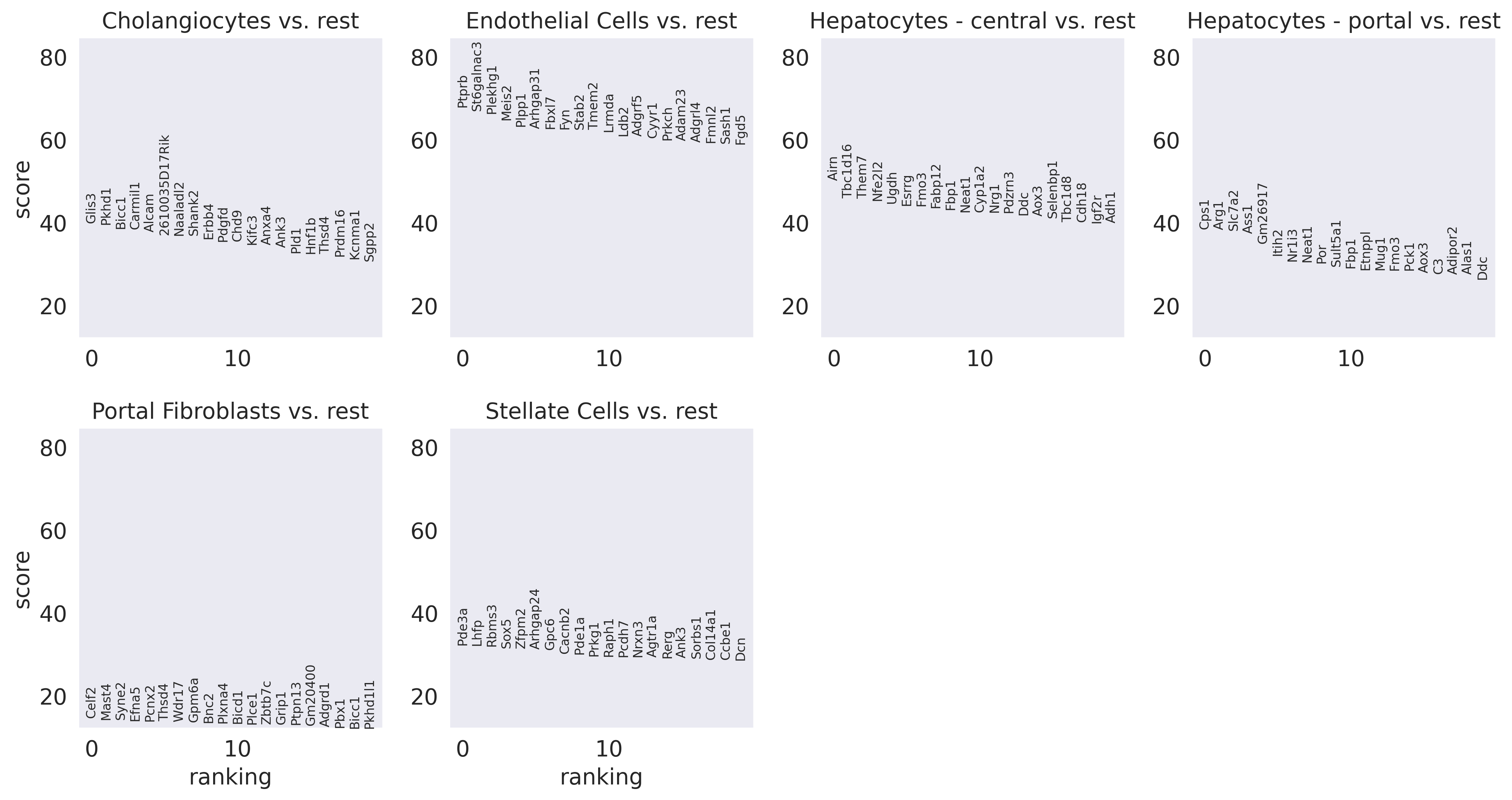

sc.tl.rank_genes_groups(CD4T, groupby="celltype", method="wilcoxon", )

diff_genes = CD4T.uns["rank_genes_groups"]["names"]

sc.pl.rank_genes_groups(CD4T)

Identifies and visualizes differentially expressed genes (DEGs) across cell types within the treated group (dose=30) using a Wilcoxon rank-sum test. differentially expressed genes (DEGs) between treatment groups for each cell type, performs WikiPathways enrichment analysis, and visualizes enriched pathways with bar plots.

for cell in cell_types_of_int:
    diff_genes = CD4T.uns["rank_genes_groups"]["names"][cell]
    glist = diff_genes[:100]
    print(glist[:10])
    glist = glist.tolist()
    enr = gp.enrichr(gene_list=glist,
                     gene_sets=["WikiPathways_2019_Mouse"],
                     organism='Mouse', # don't forget to set organism to the one you desired! e.g. Yeast
                     description='test_name',
                     outdir='test/enrichr_kegg',
                     # no_plot=True,
                     cutoff=0.5 # test dataset, use lower value from range(0,1)
                    )

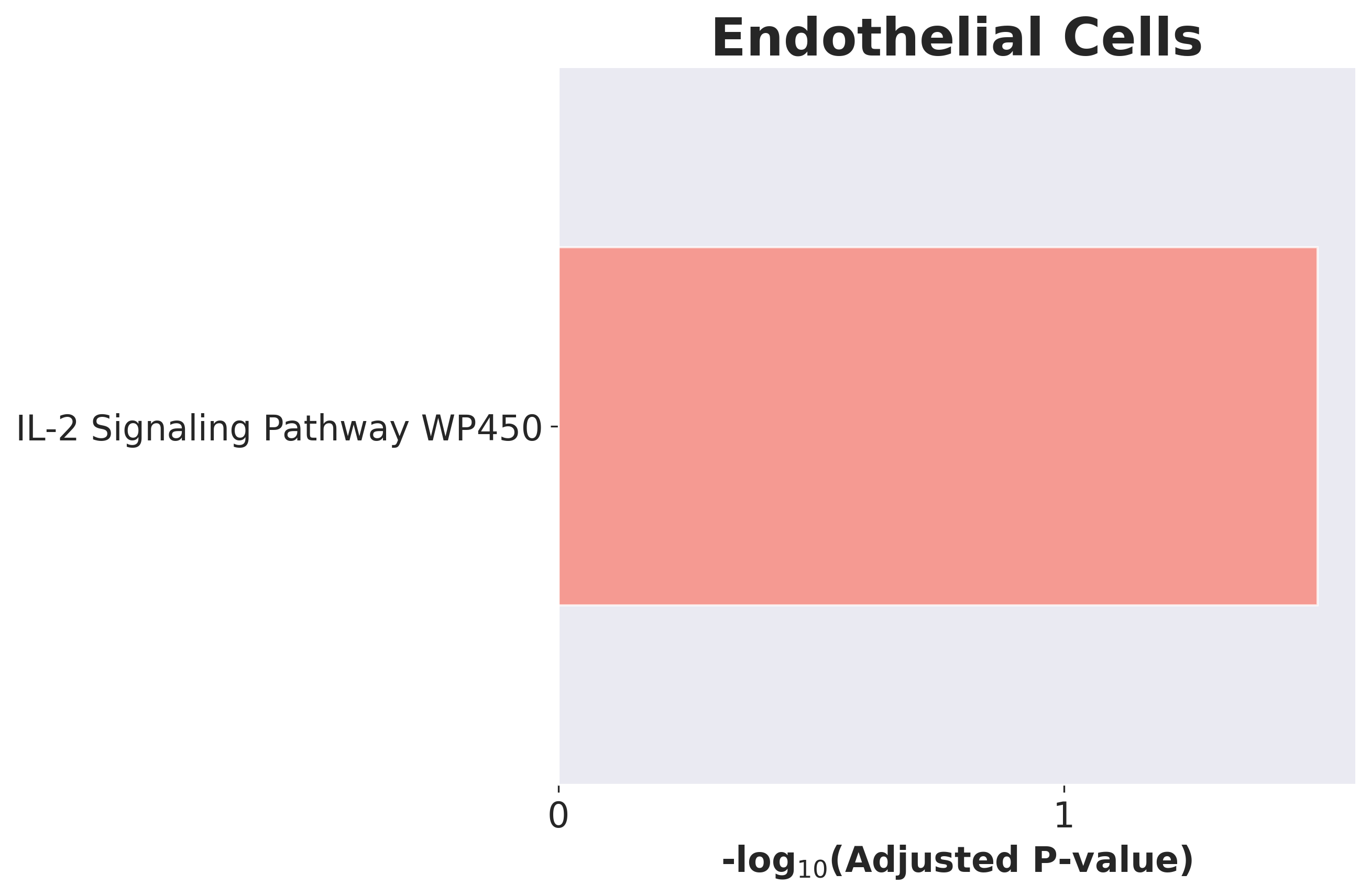

    gp.plot.barplot(enr.res2d, title = f"{cell}")
    plt.show()

['Airn' 'Tbc1d16' 'Them7' 'Nfe2l2' 'Ugdh' 'Esrrg' 'Fmo3' 'Fabp12' 'Fbp1'
 'Neat1']

['Cps1' 'Arg1' 'Slc7a2' 'Ass1' 'Gm26917' 'Itih2' 'Nr1i3' 'Neat1' 'Por'
 'Sult5a1']

['Glis3' 'Pkhd1' 'Bicc1' 'Carmil1' 'Alcam' '2610035D17Rik' 'Naaladl2'
 'Shank2' 'Erbb4' 'Pdgfd']

['Pde3a' 'Lhfp' 'Rbms3' 'Sox5' 'Zfpm2' 'Arhgap24' 'Gpc6' 'Cacnb2' 'Pde1a'
 'Prkg1']

['Celf2' 'Mast4' 'Syne2' 'Efna5' 'Pcnx2' 'Thsd4' 'Wdr17' 'Gpm6a' 'Bnc2'
 'Plxna4']

['Ptprb' 'St6galnac3' 'Plekhg1' 'Meis2' 'Plpp1' 'Arhgap31' 'Fbxl7' 'Fyn'
 'Stab2' 'Tmem2']

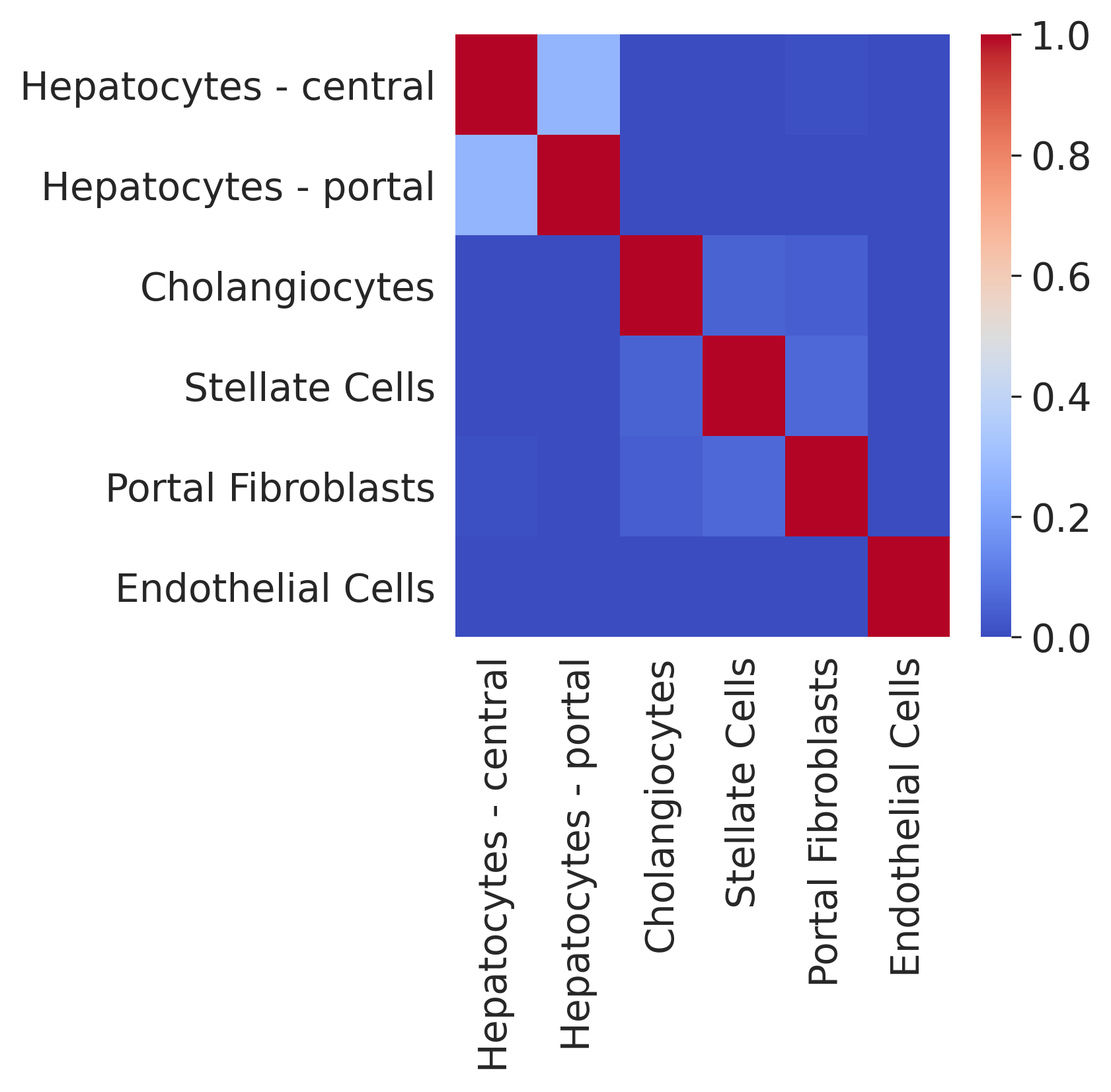

Calculates Jaccard similarity between top 50 DEGs of cell types, creates a similarity matrix, and visualizes it as a heatmap.

jaccard_sim = lambda x, y: len(set(x) & set(y))/len(set(x) | set(y))

jaccard_sim(CD4T.uns["rank_genes_groups"]["names"]["Portal Fibroblasts"][:100], CD4T.uns["rank_genes_groups"]["names"]["Cholangiocytes"][:100])

0.09289617486338798

N = len(cell_types_of_int)
dist_mat = np.zeros([N, N])
for i in range(N):
    for j in range(N):
        cell_i = cell_types_of_int[i]
        cell_j = cell_types_of_int[j]
        diff_i = CD4T.uns["rank_genes_groups"]["names"][cell_i][:50]
        diff_j = CD4T.uns["rank_genes_groups"]["names"][cell_j][:50]
        dist_ij = jaccard_sim(diff_i, diff_j)
        dist_mat[i, j] = dist_ij

dist_df = pd.DataFrame(dist_mat, columns=cell_types_of_int, index = cell_types_of_int)

sns.heatmap(dist_df, cmap = "coolwarm")

mmd = geomloss.SamplesLoss("sinkhorn")
cos = torch.nn.CosineSimilarity(dim = 1, eps = 1e-6)

for cell in cell_types_of_int:
    x = latent_adata[((adata.obs['celltype'] == cell) & (adata.obs["dose"] == "0"))]
    y = latent_adata[((adata.obs['celltype'] == cell) & (adata.obs["dose"] == "30"))]
    x_tensor = torch.Tensor(x.X)
    y_tensor = torch.Tensor(y.X)
    print(f"{cell}: {mmd(x_tensor, y_tensor)}")

Hepatocytes - central: 267.10369873046875
